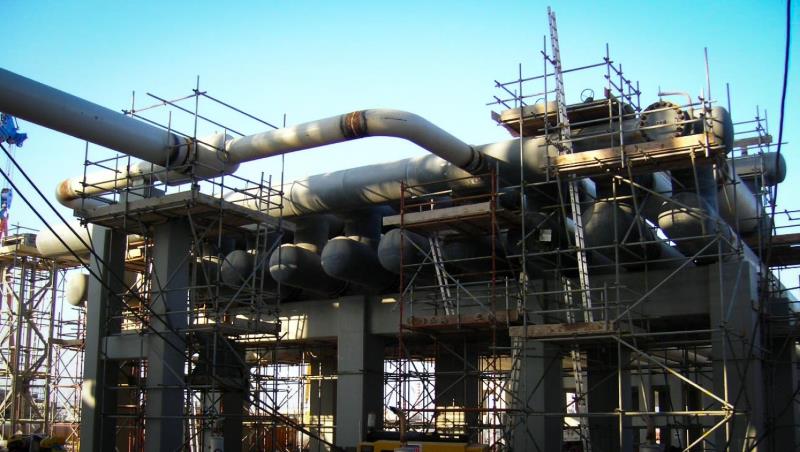

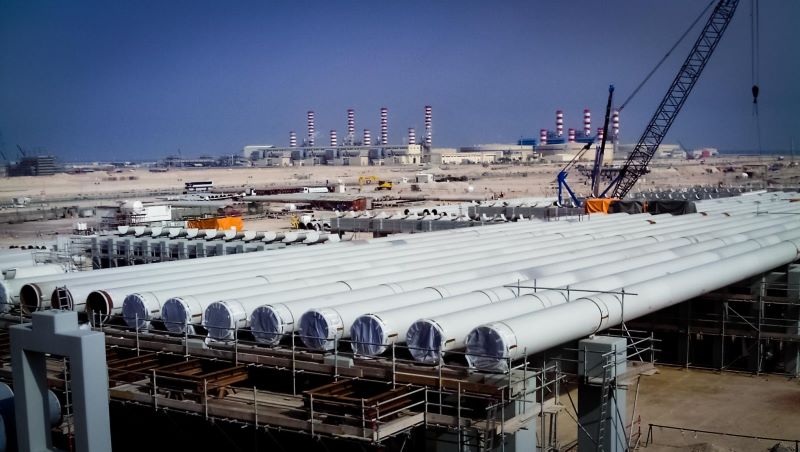

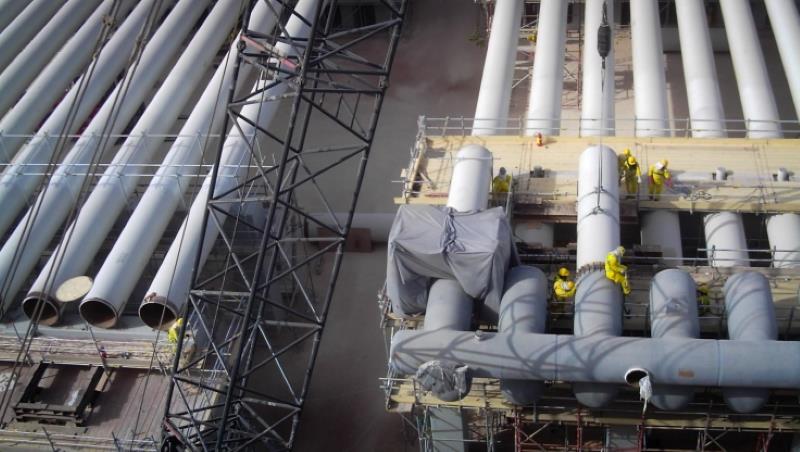

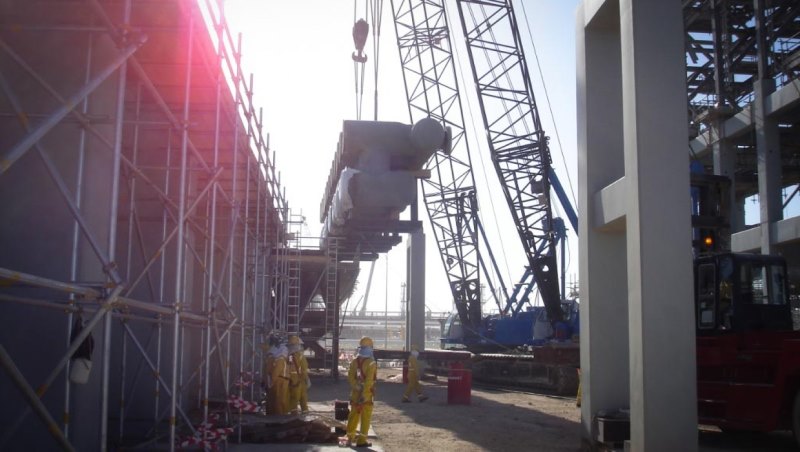

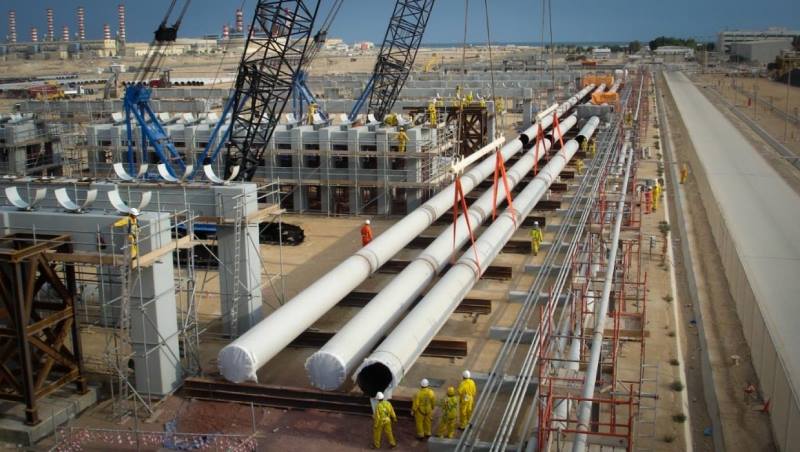

3-Phase Separation Inconel Cladded Steel Slug Catchers at LNG Facility
3-Phase Separation Inco
The highlights advanced engineering and materials solutions implemented in the design of slug catchers at a large LNG facility to address extreme operational challenges, particularly corrosion and multiphase separation. Here's a breakdown of the key components and their significance:
1. Slug Catchers
Purpose: Slug catchers are critical in oil/gas pipelines to manage "slugs" (large, intermittent volumes of liquid) in multiphase flow (gas, oil, water). They ensure stable flow to downstream equipment (e.g., separators, compressors) and prevent process upsets.
Scale: Two of fourteen units are mentioned, indicating a massive system tailored for high-capacity LNG production.
HIC/SSC Testing:
HIC (Hydrogen-Induced Cracking): Occurs in wet H₂S environments, where atomic hydrogen penetrates steel, causing internal cracks.
SSC (Sulfide Stress Cracking): Cracking under tensile stress in sour (H₂S-containing) environments.
Carbon steel plates were rigorously tested to ensure resistance to these failure modes, critical for sour service (common in LNG feed gas with contaminants).
Inconel Cladding:

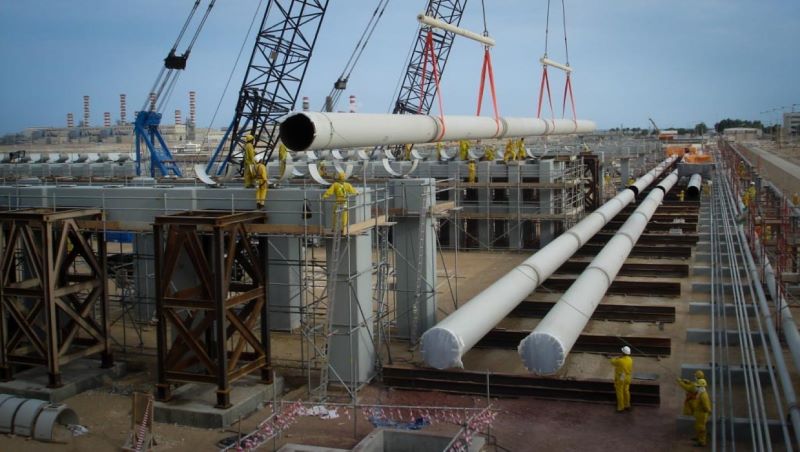

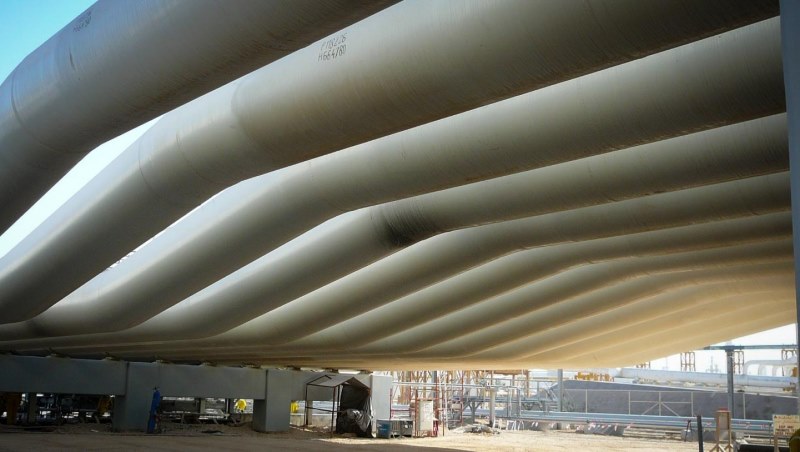

Portions of line pipes and liquid manifolds were cladded with Inconel (e.g., Inconel 625), a nickel-chromium superalloy resistant to corrosion, pitting, and cracking. This protects vulnerable areas (e.g., welds, bends) from aggressive process fluids (e.g., acidic condensate, chlorides).
Cladding (vs. solid alloy) balances cost and performance, using carbon steel for structural strength and Inconel for corrosion resistance.
Proprietary S-Bend Design: Likely a gravity-based or cyclonic separator using flow dynamics to create distinct interfaces between gas, hydrocarbons, and water. The "S-bend" geometry may enhance separation by inducing turbulence changes or centrifugal forces.
Interface Control: Critical for efficient LNG processing, as water and heavy hydrocarbons must be removed to prevent freezing in cryogenic equipment or contamination in LNG product.
Extreme Conditions: High pressure, temperature fluctuations, and corrosive contaminants (H₂S, CO₂, chlorides) necessitate robust materials and separation systems.
Corrosion Mitigation: The combination of HIC/SSC-tested carbon steel, Inconel cladding, and advanced separation reflects a layered defense against degradation, ensuring longevity and safety.
LNG Facility Reliability: These measures minimize downtime and maintenance in a high-value facility where unplanned shutdowns are costly.
Innovation: Proprietary technologies like the S-bend highlight the push for optimized separation efficiency in complex 3-phase systems.
Why ZHM Huawu Metal 3-Phase Separation Inconel Cladded Steel Slug Catchers at LNG Facility ?
 |
 |
 |
 |
| Reliable and Customized Designs | Cutting Edge Designing Process | Free Online Price System | Easy Bolt-by-number Assembly |
 |
 |
 |
 |
| Over Two Decades of Experience | Value For Money | Unmatched in Quality and Craftmanship | Excellent Customer Service |
Would you like to see more information and images of ZHM Huawu Steel's Metal 3-Phase Separation Inconel Cladded Steel Slug Catchers at LNG Facility ? Visit our Photo Gallery.
